Piston Type Single Acting Spring Return Pneumatic Actuator

Product Categories
Jiangsu Flowan Auto-Control Co.,ltd
Contact Now

Piston Type Single Acting Spring Return Pneumatic Actuator

  • 1
  • 2
  • 3

Brand Name : JSFC

Model Number : AT-SR210K10

Certification : SIL3/CE/ISO9001

Place of Origin : Tianjin,China

MOQ : 1 Ea

Price : FOB SHANGHAI

Payment Terms : T/T

Supply Ability : 100000PCS/Month

Delivery Time : 3-7 working days

Packaging Details : wooden case

Product : Pneumatic Actuator with Spring Return

Low Temperature : -40°c~+80°c

Plated: Range : PTFE or Nickel

Structure : Piston Type

Working Type : Straight Trip

Power : Pneumatic

Contact Now

Single Acting Valve pneumatic Actuator,Spring return Penumatic Actuator

► Product Description

1. Pneumatic Actuator AT Series (Double-Acting & Spring-Return)


2. Pressure Range: Max. working pressure 10bar


3. Double-acting:2.5bar~8bar


4. Single-acting:2.5bar~8bar


5. Adjustment Range: 90°±5°


6. Lubrication: All the moving parts are coated with lubricants, extending their service life


7. Life Time: One million time


8. Type: Single-acting, double-acting

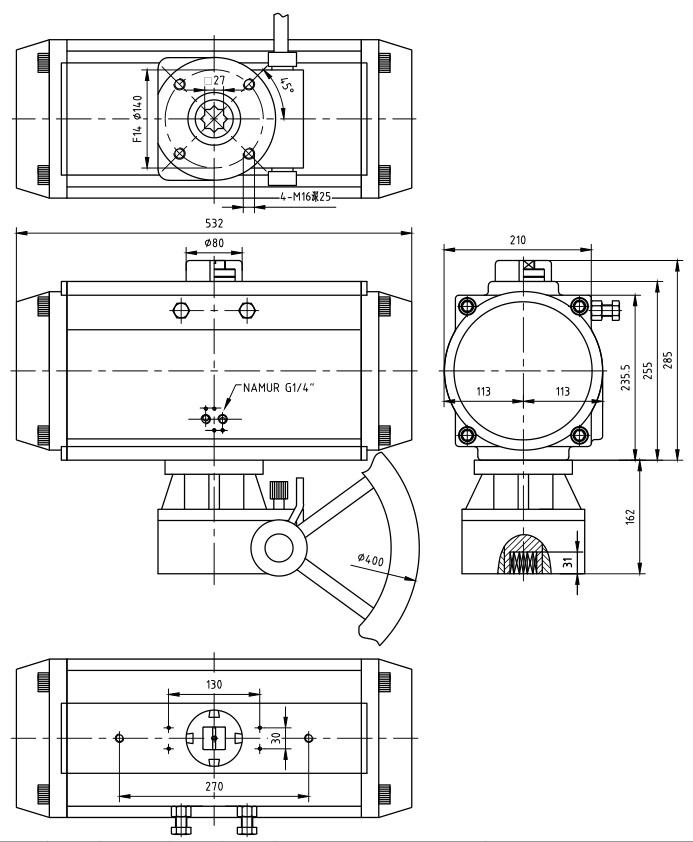

► Dimension with Hand wheel

Piston Type Single Acting Spring Return Pneumatic Actuator

► Output torque (unit: nm)

Model Air pressure(Bar)
2 2.5 3 4 5 6 7 8 springs’output
(Spring Q.ty) 0° 90° 0° 90° 0° 90° 0° 90° 0° 90° 0° 90° 0° 90° 0° 90° 90° 0°
Start End Start End Start End Start End Start End Start End Start End Start End Start End
SR-210 5 237 126 369 258 360 260
6 179 46 311 178 442 309 432 313
7 253 99 384 23 647 493 908 754 503 365
8 326 150 589 413 853 677 575 417
9 531 333 795 597 1058 860 647 469
10 473 253 737 517 1000 780 1263 1043 1526 1306 719 521
11 679 437 942 700 1205 963 1468 1226 791 573
12 621 357 884 620 1147 883 1410 1146 863 625


► Options

Piston Type Single Acting Spring Return Pneumatic Actuator

► About FLUITECH



1. Since 2000.About 17 years of manufacturing and export.
2. Main products:Solenoid Valve,Actuator,Air cylinder,Air source treatment,ball Valve,Butterfly Valve and etc.
3. Main markets: America, Europe, Brazil and so on.
4. we accept Paypal, Western Union, bank T.T,LC payment.
5. Expert packing to protect products in shipment
6. OEM is accepable.
7. Sample order is accepable
8. Fast responsilbe to all your questions.
9. 100% quality test before packing.Short delivery time for standard products.
10. The size of the company is expanding,product types will be more and more.

More information,pls send us email:sales@flowan-auto.net
