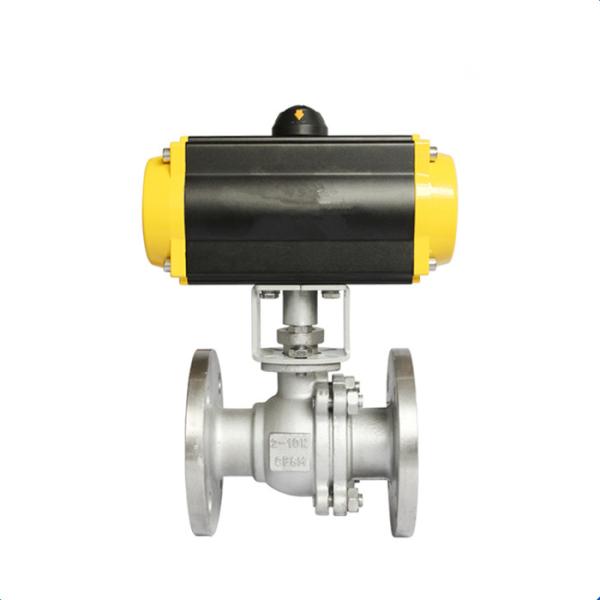

NAMUR ISO5211 Ball Valve Pneumatic Actuator Single Acting

Name: NAMUR ISO5211 Ball Valve Pneumatic Actuator Single Acting
Brand: JSFC
Price: 1 USD

Quality NAMUR ISO5211 Ball Valve Pneumatic Actuator Single Acting wholesale

Brand Name : JSFC

Model Number : SR-75

Certification : SIL3/CE/ISO9001

Place of Origin : Tianjin,China

MOQ : 1 Ea

Price : FOB SHANGHAI

Payment Terms : T/T, L/C, Western Union

Supply Ability : 50000PCS/Month

Delivery Time : 3-7 working days

Packaging Details : Wooden Case

Name : high torque rotary actuator

Color : grey

Type : Symmetric Type

Model : AT series

Stroke : 0-90° ±5°

Working Temp. : -20℃ ~+ 80℃

Body Material : Aluminum Alloy

Contact Now

NAMUR ISO5211 Single Acting ball valve Rotary Pneumatic Actuator spring return

► Features

Rack & pinion design

Compact and light weight

ISO 5211 mounting pattern

Adjustable stops for both open and closed positions

Accessory mounting dimensions to NAMUR specifications

Machined gear teeth provide longest life and smoother operation

High cycle life with low friction bearings on all moving and sliding surfaces

Safety contained springs prevent hazards of inadvertent ejection during maintenance

Corrosion resistant with hard anodized body, PTFE coated end caps, and stainless steel fasteners

Modular design utilizing same body and end caps for both double-acting and spring-return versions

► Other Features

Extruded aluminum ASTM6005 body with both internal and external corrosion protection having honed cylinder surface for longer life and low coefficient of friction.
Dual piston rack and pinion design for compact construction, symmetric mounting position, high-cycle life and fast operation, reverse rotation can be accomplished in the field by simply inverting the pistons.
Multiple bearings and guides on racks and pistons, low friction, high cycle life and prevent shaft blowout.
Modular pre-loaded spring cartridge design, with coated spring for simple versatile range, greater safely and corrosion resistance, longer cycle life.
Fully machined teeth on piston and pinion for accurate low backlash rack and pinion engagement, maximum efficiency, stainless steel fasteners for long term corrosion resistance.
Full conformance to the latest specifications: ISO5211, DIN3337 and NAUMR or product interchange ability and easy mounting of solenoids, limit switches and other accessories.
Fluitech has a complete line of rack and pinion actuators, which is the best choice for butterfly and bass valves control. Reliable, reality available products supplying in a broad of operating environments. Our products are NAMUR & ISO5211 compliant and are manufactured under ISO 9001:2000 certification and are CE approved.
