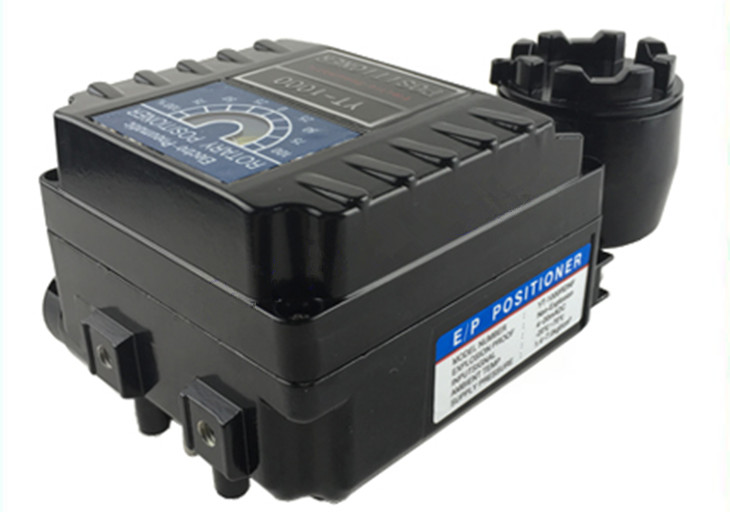

SIL3 Electro Pneumatic Positioner For Quarter Turn Control Valves

Name: SIL3 Electro Pneumatic Positioner For Quarter Turn Control Valves
Brand: JSFC
Price: 1 USD

Quality SIL3 Electro Pneumatic Positioner For Quarter Turn Control Valves wholesale

Brand Name : JSFC

Model Number : YT-1000R

Certification : SIL3/CE/ISO9001

Place of Origin : Tianjin,China

MOQ : 1 Ea

Price : FOB SHANGHAI

Payment Terms : T/T

Supply Ability : 50000PCS/Month

Delivery Time : 3-7 working days

Packaging Details : Carton Boxes

Type : Rotary

Stroke : electro pneumatic valve positioner

Air connection : PT（NPT）1/4

Gauge connection : PT（NPT）1/8

Ambient temperature : -20℃～70℃

Pressure Gauge : 0 ~ 2 kg

Explosure proof : exdmllBT5

Hysteresis : ±1% F.S

Contact Now

Aluminum Die casting Electro Pneumatic Positioner for quarter- turn control valves

Product Description

The Pneumatic Pneumatic Positioner YT-1000 series are used for pneumatic valve actuators by means of pneumatic controller or control systems with an output signal of 3 to 5 psi or split ranges.
- The product can operate normally in very extreme environment, such as vibration and temperature.
- The durability has been proven after testing 2 million cycles at the minimum.
- Response time is very short and accurate.
- Simple part change can set 1/2 Split Range.
- It is economical due to less air-consumption.
- Direct / Reverse action can be set easily.

Applications

Fluitech positioners are used to control quarter- turn control valves such as butterfly and ball valves (standard and segmented) and its sensitive two-stage relay makes it ideal for precise damper control applications. Specify whenever valve positioning and sensitivity is critical.

For modulating control of valve positions, it automatically positions the valve to precise angles between 0° and 90° in response to a pneumatic input signal. The standard positioner is Double Acting but can be easily converted to Single Acting/Spring Return. It also has Split Range capabilities and an easy to adjust Span and Zero.

Specifications

Item.Type	Single / Double
Input Signal	4 ~ 20 mA DC
Impedance	250 +/- 15 OHM
Supply Pressure	0.14-0.7MPa(1.4-7bar)
Stroke	0 - 90°
Air Connection	PT(NPT)1/4
Gauge Connection	PT(NPT)1/8
Condult	PF 1/2 (G1/2) (N) PT1/2
Explosure proof	exdmllBT5 exdmllCT5 exdmllBT6
Pressure Gauge	0 ~ 2 kg 0 ~ 4 kg 0 ~ 10 kg
Enclosure	IP66
Ambient Temperature	( -20℃ ~ 70℃ ) / (-4 ~ 158 °F )
Linearity	±1% F.S ±2% F.S
Hysteresis	±1% F.S
Sensitivity	±0.2% F.S ±0.5% F.S
Repeatability	±0.5% F.S
Air Consumption	3LPM (sup = 1.4kg, 20 psl )
Flow Capacity	80LPM (sup = 1.4kg, 20 psl )
Material	Aluminum Die casting
Weight	1.7kg(3.1Ib)

SIL3 Electro Pneumatic Positioner For Quarter Turn Control Valves
