2 Way Flanged Pneumatic Ball Valve

Name: 2 Way Flanged Pneumatic Ball Valve
Brand: JSFC
Price: 1 USD

Quality 2 Way Flanged Pneumatic Ball Valve wholesale

Brand Name : JSFC

Model Number : Ball valve

Certification : CE/ISO9001

Place of Origin : Tianjin,China

MOQ : 1 Ea

Price : FOB SHANGHAI

Payment Terms : T/T, , Western Union, L/C

Supply Ability : 50000PCS/Month

Delivery Time : 3-7 working days

Packaging Details : Plywood case

Name : 2 way ball valve

Structure : Pneumatic floating ball valve

Color : Silver Gray

Material : Stainless Steel

Sealing : PTFE

Port Size : 1/2"-4''(DN15-DN100)

Contact Now

Stainless Steel Thread Pneumatic Ball Valve With double acting

►Product Specifications

Nominal Diameter	DN50-DN500
Connection	Thread
Working Pressure	Low Pressure
Working Temperature	Standard Temperature
Structure	Thread Pneumatic Ball Valve
Media	Water, Steam

►Product Dimension

2 Way Flanged Pneumatic Ball Valve

VALVE	DIMENSION Pressure:1.6mpa Unit:mm								Actuator Model

	L	T	H	S	K	Q	R	D
DN8	109	74	45	46.5	23	72	8	BSPT1/4''	AT32
DN8	123.5	74	45	65	23	87	8	BSPT1/4''	AT40
DN8	146	74	45	71.5	23	98	8	BSPT1/4''	AT52
DN10	109	73	45	46.5	23	72	10	BSPT3/8''	AT32
DN10	123.5	73	45	65	23	87	10	BSPT3/8''	AT40
DN10	146	73	45	71.5	23	98	10	BSPT3/8''	AT52
DN15	109	69	45	46.5	23	72	15	BSPT1/2''	AT32
DN15	123.5	69	45	65	23	87	15	BSPT1/2''	AT40
DN15	146	69	45	71.5	23	98	15	BSPT1/2''	AT52
DN20	146	80	54	71.5	26.5	98	20	BSPT3/4''	AT52
DN25	146	88	64	71.5	28	98	25	BSPT1''	AT52
DN25	170	88	56	83.5	28	116	25	BSPT1''	AT63
DN32	170	100	68	83.5	36	116	32	BSPT1 1/4''	AT63
DN40	184	110.5	73	96	38.5	128	38	BSPT1 1/2''	AT75
DN50	211	136	84	104	44	136	49	BSPT2''	AT83
DN65	265	168	95	109	61	146	65	BSPT2 1/2''	AT92
DN80	275	194	100	125	70	153	78	BSPT3''	AT105
DN100	305	240	112	147	82	175	98	BSPT4''	AT125

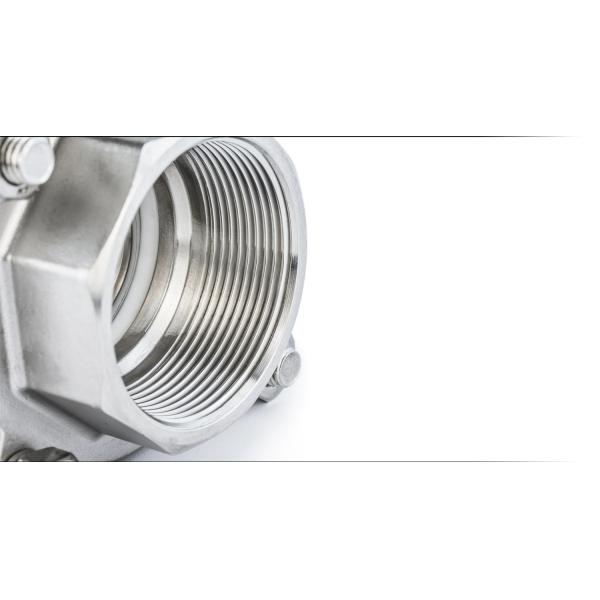

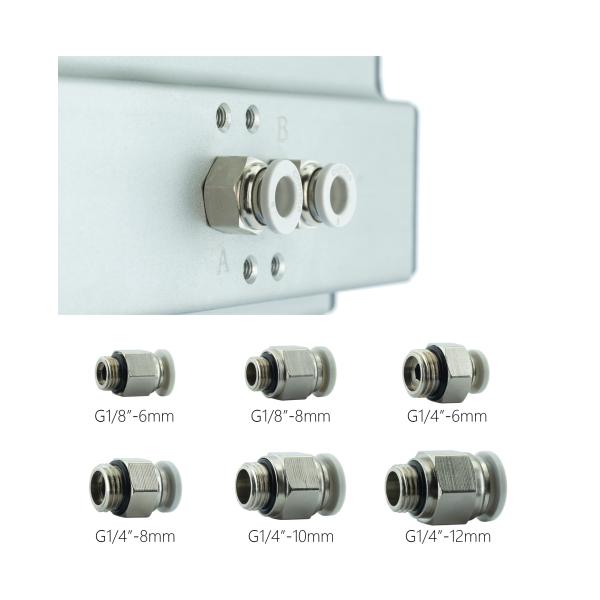

►Detailed Info.

2 Way Flanged Pneumatic Ball Valve

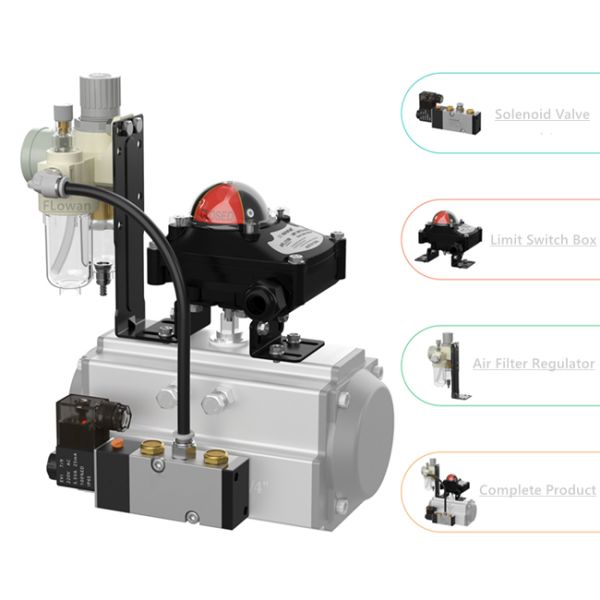

►Accessories Options

2 Way Flanged Pneumatic Ball Valve

►Technical Data

Nominal pressure:6.9Mpa(1000Psi)

Applicable temperature:-20~180ºC

Body and Bonnet:CF8(304)CF8M(316)

Ball:CF8(304)CF8M(316)

Stem:304 or316

Sealing and Packing:PTFE

Thread end:BSP,BSPT,DIN2999,NPT

►Applications

Beer& Drink Filling Machinery
Textile printing& Dyeing
Gas industry
Pharmacy& Medical Equipment
Chemical industry
Disinfection
Frothing Equipment
Water/sewage Disposal

Product Tags:

DN15 flanged pneumatic ball valve

2 Way flanged pneumatic ball valve

ISO9001 air actuated ball valve
