Double Acting Aluminum Alloy Pneumatic Rotary Actuator With High Cycle Life

Product Categories
Jiangsu Flowan Auto-Control Co.,ltd
Contact Now

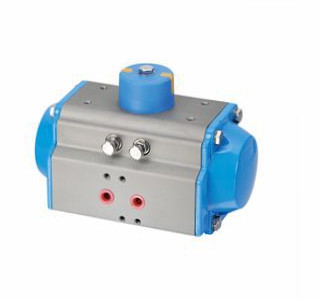

Double Acting Aluminum Alloy Pneumatic Rotary Actuator With High Cycle Life

  • 1
  • 2

Brand Name : JSFC

Model Number : AT140

Certification : SIL3/CE/ISO9001

Place of Origin : Tianjin,China

MOQ : 1 Ea

Price : FOB SHANGHAI

Payment Terms : T/T, L/C, Western Union

Supply Ability : 50000PCS/Month

Delivery Time : 3-7 working days

Packaging Details : Wooden Case

Name : compact pneumatic actuator

Color : orange

Model : AT series

Stroke : 0-90° ±5°

Working Temp. : -20℃ ~+ 80℃

Body Material : Aluminum Alloy

Structure : Rack and Pinion

Piston O-Ring : NBR

Contact Now

High cycle life ​allumimum Alloy double acting Rotary Pneumatic Actuator with solenoid valve

Description

Actuator:
Full conformance to the specifications of: ISO5211, DIN3337, VDI/VDE3845, NAMUR.

The extruded high strength aluminum bodies are precision honed and hard anodized yielding an internal bore surface that can provide low coefficient of friction, smooth performance and a long service life.

All acting surfaces are fitted with high quality bearings, resulting in low friction, quite and high cycle life.
The two independent external travel stop adjustment bolts can easily and precisely adjust up to ±5º at both open and closed directions.


Multifunction position indicator with NAMUR standard is convenient for mounting accessories.
Pre-compressed load springs are convenient for safe mounting and disassemble operations.
Die-casted aluminum pistons and end caps are high strength and light weight.
Optional Viton and Silicone seals are available for low and high temperature

Features

Rack & pinion design
Compact and light weight
ISO 5211 mounting pattern
Adjustable stops for both open and closed positions
Accessory mounting dimensions to NAMUR specifications
Machined gear teeth provide longest life and smoother operation
High cycle life with low friction bearings on all moving and sliding surfaces
Safety contained springs prevent hazards of inadvertent ejection during maintenance
Corrosion resistant with hard anodized body, PTFE coated end caps, and stainless steel fasteners
Modular design utilizing same body and end caps for both double-acting and spring-return versions

  • Extruded aluminum ASTM6005 body with both internal and external corrosion protection having honed cylinder surface for longer life and low coefficient of friction.
  • Dual piston rack and pinion design for compact construction, symmetric mounting position, high-cycle life and fast operation, reverse rotation can be accomplished in the field by simply inverting the pistons.
  • Multiple bearings and guides on racks and pistons, low friction, high cycle life and prevent shaft blowout.

Double Acting Aluminum Alloy Pneumatic Rotary Actuator With High Cycle Life
